Integrated small terminal (8-point adaptor mounting type)
◆ Integrated small terminal (8-point adaptor mounting type)
| Number of I/O points | Input/output specifications | Method | Consumption current (mA) | Connection | I/O side Connection connector | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 8 | － | DC Input |
NPN | 6 | 40 | 4-wire type (insulation) |
e-CON | A | 40 | BL296SB-08F-4-20 | Open |
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-4-20 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-4-20 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-4-20 | Open | |||||
| － | 8 | Tr 出力 |
NPN | 6 | 10 | BL296PB-08F-4-20 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-4-20 | Open | |||||

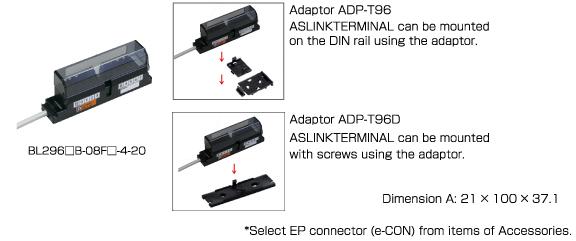

| DIN rail adaptor for mounting ASLINKTERMINAL integrated small 8-point terminal (4 sets included) |
ADP-T96 | Open | |||||||||
| Direct-mount adaptor for mounting ASLINKTERMINAL integrated small 8-point terminal (4 sets included) |
ADP-T96D | Open | |||||||||
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296SB-08F-4-20 | ○ | ○ | 10 |
| BL296SB-08FS-4-20 | ○ | ○ | 10 |
| BL296XB-08F-4-20 | ○ | ○ | 10 |
| BL296XB-08FS-4-20 | ○ | ○ | 10 |
| BL296PB-08F-4-20 | ○ | ○ | 10 |
| BL296PB-08FS-4-20 | ○ | ○ | 10 |
| ADP-T96 | - | ○ | - |
| ADP-T96D | - | - | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-08F-4-20 |  |
 |
| BL296SB-08FS-4-20 | |
|
| BL296XB-08F-4-20 | |
|
| BL296XB-08FS-4-20 | |
|
| BL296PB-08F-4-20 | |
|
| BL296PB-08FS-4-20 | |
|
| ADP-T96 |  |
|
| ADP-T96D |
