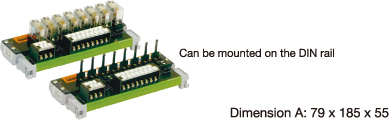

Relay Terminal (G2R relay mounting type)
| Number of I/O points | Input/output specification | Method | Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | |||||||
| － | 8 | Relay output All points independent circuit |
Relay | 6 | 200 | 4-wire type (insulation) | A | 365 | BL296PB-08RS | Open |
| － | 8 | Relay not mounted All points independent circuit |
6 | ※1 | 205 | BL296PB-08RSN | Open | |||
* This differs depending on the relay used.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296PB-08RS | - | ○ | 10 |
| BL296PB-08RSN | - | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296PB-08RS |  |
 |
| BL296PB-08RSN | |
