M12/M8 Cable Type (IP67)

Number of I/O points Input/output specification Method Consumption current
(mA)		 Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(¥)
Input Output Transmission side I/O side
2 － DC input NPN 3.4 11.2 4-wire type (insulation) A 35 BL287SB-02F-2D820 Open
2 － PNP 3.4 11.2 BL287SB-02FS-2D820 Open
1 1 DC input/Tr output NPN 3.5 8.0 BL287XB-02F-2D820 Open
1 1 PNP 3.6 8.0 BL287XB-02FS-2D820 Open
2 － DC input NPN 3.4 11.2 BL287SB-02F-2D720 Note 1) Open
2 － PNP 3.4 11.2 BL287SB-02FS-2D720 Note 1) Open
1 1 DC input/Tr output NPN 3.5 8.0 BL287XB-02F-2D720 Note 2) Open
1 1 PNP 3.6 8.0 BL287XB-02FS-2D720 Note 2) Open

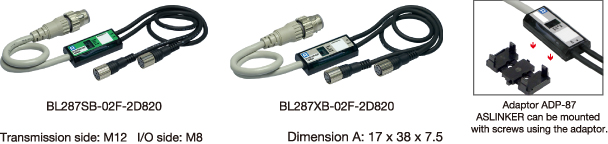

ASLINKER mounting dedicated adaptor (4 adaptors included) ADP-87 Open

Note 1): M8 connector specication is 3 poles.
Note 2): M8 connector specication is 3 poles for input, and 4 poles for output.

*The dimensions are numerical values excluding the cable section.

*Address Writer is required for writing/reading device address.

*ASLINKER M12/M18 cable type (IP67) of 2-wire (non-insulation) can be made according to order.

◆Comformance and Compliance

Model CE RoHS China RoHS
BL287SB-02F-2D820 ○ ○ 10
BL287SB-02FS-2D820 ○ ○ 10
BL287XB-02F-2D820 ○ ○ 10
BL287XB-02FS-2D820 ○ ○ 10
BL287SB-02F-2D720 ○ ○ 10
BL287SB-02FS-2D720 ○ ○ 10
BL287XB-02F-2D720 ○ ○ 10
BL287XB-02FS-2D720 ○ ○ 10
ADP-87 - ○ -

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
BL287SB-02F-2D820 pdf dxf
BL287SB-02FS-2D820 dxf
BL287XB-02F-2D820 dxf
BL287XB-02FS-2D820 dxf
BL287SB-02F-2D720 Note 1) dxf
BL287SB-02FS-2D720 Note 1) dxf
BL287XB-02F-2D720 Note 2) dxf
BL287XB-02FS-2D720 Note 2) dxf
ADP-87
Contact us
 dxf

Note 1): M8 connector specication is 3 poles.
Note 2): M8 connector specication is 3 poles for input, and 4 poles for output.
