Integrated Small Terminal
◆Integrated Small Terminal
| Number of I/O points | Input/output specification | Method | Consumption current (mA) | Connection | I/O side Connection connector | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 4 | － | DC Input |
NPN | 5 | 22 | 4-wire type (insulation) | e-CON | A | 35 | BL296SB-04F-4A-20 | Open |
| 4 | － | PNP | 5 | 22 | BL296SB-04FS-4A-20 | Open | |||||
| 2 | 2 | DC input/Tr output | NPN | 5 | 18 | BL296XB-04F-4A-20 | Open | ||||
| 2 | 2 | PNP | 5 | 18 | BL296XB-04FS-4A-20 | Open | |||||
| － | 4 | Tr Output |
NPN | 5 | 8 | BL296PB-04F-4A-20 | Open | ||||
| － | 4 | PNP | 5 | 8 | BL296PB-04FS-4A-20 | Open | |||||
| 8 | － | DC Input |
NPN | 6 | 40 | 4-wire type (insulation) | e-CON | B | 41 | BL296SB-08F-4A-20 | Open |
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-4A-20 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-4A-20 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-4A-20 | Open | |||||
| － | 8 | Tr Output |
NPN | 6 | 10 | BL296PB-08F-4A-20 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-4A-20 | Open | |||||
| 16 | － | DC Input |
NPN | 8 | 80 | 4-wire type (insulation) | e-CON | C | 60 | BL296SB-16F-4A-20 | Open |
| 16 | － | PNP | 8 | 80 | BL296SB-16FS-4A-20 | Open | |||||
| 8 | 8 | DC input/Tr output | NPN | 8 | 50 | BL296XB-16F-4A-20 | Open | ||||
| 8 | 8 | PNP | 8 | 50 | BL296XB-16FS-4A-20 | Open | |||||
| － | 16 | Tr Output |
NPN | 8 | 15 | BL296PB-16F-4A-20 | Open | ||||
| － | 16 | PNP | 8 | 15 | BL296PB-16FS-4A-20 | Open | |||||
| DIN rail adaptor for tting ASLINKTERMINAL integrated type small 4-point/8-point terminal (4 sets included) | ADP-T96 | Open | DIN rail adaptor for tting ASLINKTERMINAL integrated type small 16-point terminal (4 sets included) | ADP-W96 | Open | ||||||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296SB-04F-4A-20 | ○ | ○ | 10 |
| BL296SB-04FS-4A-20 | ○ | ○ | 10 |
| BL296XB-04F-4A-20 | ○ | ○ | 10 |
| BL296XB-04FS-4A-20 | ○ | ○ | 10 |
| BL296PB-04F-4A-20 | ○ | ○ | 10 |
| BL296PB-04FS-4A-20 | ○ | ○ | 10 |
| BL296SB-08F-4A-20 | ○ | ○ | 10 |
| BL296SB-08FS-4A-20 | ○ | ○ | 10 |
| BL296XB-08F-4A-20 | ○ | ○ | 10 |
| BL296XB-08FS-4A-20 | ○ | ○ | 10 |
| BL296PB-08F-4A-20 | ○ | ○ | 10 |
| BL296PB-08FS-4A-20 | ○ | ○ | 10 |
| BL296SB-16F-4A-20 | ○ | ○ | 10 |
| BL296SB-16FS-4A-20 | ○ | ○ | 10 |
| BL296XB-16F-4A-20 | ○ | ○ | 10 |
| BL296XB-16FS-4A-20 | ○ | ○ | 10 |
| BL296PB-16F-4A-20 | ○ | ○ | 10 |
| BL296PB-16FS-4A-20 | ○ | ○ | 10 |
| ADP-T96 | - | ○ | - |
| ADP-W96 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.

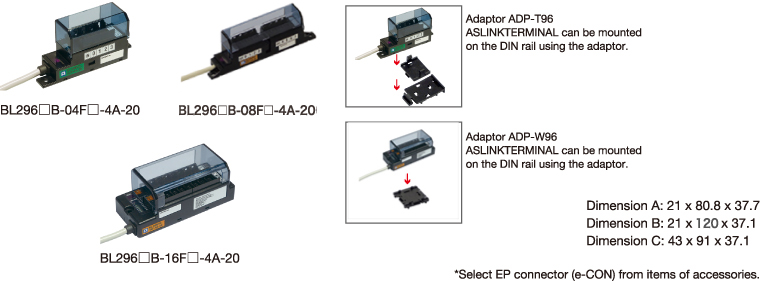

◆Integrated small 4-point terminal
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-04F-4A-20 |  |
 |
| BL296SB-04FS-4A-20 | |
|
| BL296XB-04F-4A-20 | |
|
| BL296XB-04FS-4A-20 | |
|
| BL296PB-04F-4A-20 | |
|
| BL296PB-04FS-4A-20 | |
|
| ADP-T96 |  |
◆Integrated small 8-point terminal
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-08F-4A-20 | |
|
| BL296SB-08FS-4A-20 | |
|
| BL296XB-08F-4A-20 | |
|
| BL296XB-08FS-4A-20 | |
|
| BL296PB-08F-4A-20 | |
|
| BL296PB-08FS-4A-20 | |
|
| ADP-T96 | |
◆Integrated small 16-point terminal
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-16F-4A-20 | |
|
| BL296SB-16FS-4A-20 | |
|
| BL296XB-16F-4A-20 | |
|
| BL296XB-16FS-4A-20 | |
|
| BL296PB-16F-4A-20 | |
|
| BL296PB-16FS-4A-20 | |
|
| ADP-W96 | |
