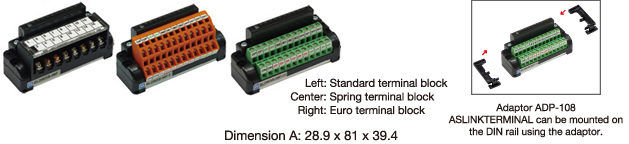

Small Terminal Block Terminal
| Number of I/O points | Input/output specification | Method | Consumption current (mA) | Connection | Terminal block type | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 8 | － | DC input | NPN | 6 | 40 | 4-wire type (insulation) | Standard terminal block | A | 75 | BL296SB-08F | Open |
| 8 | － | PNP | 6 | 40 | BL296SB-08FS | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS | Open | |||||
| 8 | － | DC input | NPN | 6 | 40 | Spring terminal block | 70 | BL296SB-08F-3 | Open | ||
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-3 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-3 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-3 | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F-3 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-3 | Open | |||||
| 8 | － | DC input | NPN | 6 | 40 | Euro terminal block | 65 | BL296SB-08F-11 | Open | ||
| 8 | － | PNP | 6 | 40 | BL296SB-08FS-11 | Open | |||||
| 4 | 4 | DC input/Tr output | NPN | 6 | 26 | BL296XB-08F-11 | Open | ||||
| 4 | 4 | PNP | 6 | 26 | BL296XB-08FS-11 | Open | |||||
| － | 8 | Tr output | NPN | 6 | 10 | BL296PB-08F-11 | Open | ||||
| － | 8 | PNP | 6 | 10 | BL296PB-08FS-11 | Open | |||||
| DIN rail adaptor for fitting ASLINKTERMINAL small terminal block terminal (1 set included) | ADP-108 | Open | |||||||||
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296SB-08F | ○ | ○ | 10 |
| BL296SB-08FS | ○ | ○ | 10 |
| BL296XB-08F | ○ | ○ | 10 |
| BL296XB-08FS | ○ | ○ | 10 |
| BL296PB-08F | ○ | ○ | 10 |
| BL296PB-08FS | ○ | ○ | 10 |
| BL296SB-08F-3 | ○ | ○ | 10 |
| BL296SB-08FS-3 | ○ | ○ | 10 |
| BL296XB-08F-3 | ○ | ○ | 10 |
| BL296XB-08FS-3 | ○ | ○ | 10 |
| BL296PB-08F-3 | ○ | ○ | 10 |
| BL296PB-08FS-3 | ○ | ○ | 10 |
| BL296SB-08F-11 | ○ | ○ | 10 |
| BL296SB-08FS-11 | ○ | ○ | 10 |
| BL296XB-08F-11 | ○ | ○ | 10 |
| BL296XB-08FS-11 | ○ | ○ | 10 |
| BL296PB-08F-11 | ○ | ○ | 10 |
| BL296PB-08FS-11 | ○ | ○ | 10 |
| ADP-108 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296SB-08F |  |
 |
| BL296SB-08FS | |
|
| BL296XB-08F | |
|
| BL296XB-08FS | |
|
| BL296PB-08F | |
|
| BL296PB-08FS | |
|
| BL296SB-08F-3 | |
|
| BL296SB-08FS-3 | |
|
| BL296XB-08F-3 | |
|
| BL296XB-08FS-3 | |
|
| BL296PB-08F-3 | |
|
| BL296PB-08FS-3 | |
|
| BL296SB-08F-11 | |
|
| BL296SB-08FS-11 | |
|
| BL296XB-08F-11 | |
|
| BL296XB-08FS-11 | |
|
| BL296PB-08F-11 | |
|
| BL296PB-08FS-11 | |
|
| ADP-108 |  |
