Cable Type 2-wire Type
| Number of I/O points | Input/output specification | Method | Consumption current (mA) |
Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (¥) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | |||||||
| 2 | － | DC input | NPN | 15.4 | － | 2-wire type (non-insulation) | A | 15 | B281SB-02U-CC20 | Open |
| 2 | － | PNP | 13.5 | － | B281SB-02US-CC20 | Open | ||||
| 1 | 1 | DC input/Tr output | NPN | 10.5 | － | B281XB-02U-CC20 | Open | |||
| 1 | 1 | PNP | 10.1 | － | B281XB-02US-CC20 | Open | ||||
| － | 2 | Tr output | NPN | 5.5 | － | B281PB-02U-CC20 | Open | |||
| － | 2 | PNP | 6.5 | － | B281PB-02US-CC20 | Open | ||||

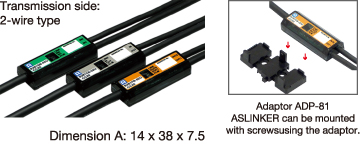

| 2-wire type ASLINKER mounting dedicated adaptor (2 adaptors included) | ADP-81 | Open | ||||||||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| B281SB-02U-CC20 | ○ | ○ | 10 |
| B281SB-02US-CC20 | ○ | ○ | 10 |
| B281XB-02U-CC20 | ○ | ○ | 10 |
| B281XB-02US-CC20 | ○ | ○ | 10 |
| B281PB-02U-CC20 | ○ | ○ | 10 |
| B281PB-02US-CC20 | ○ | ○ | 10 |
| ADP-81 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| B281SB-02U-CC20 |  |
 |
| B281SB-02US-CC20 | |
|
| B281XB-02U-CC20 | |
|
| B281XB-02US-CC20 | |
|
| B281PB-02U-CC20 | |
|
| B281PB-02US-CC20 | |
|
| ADP-81 | |
