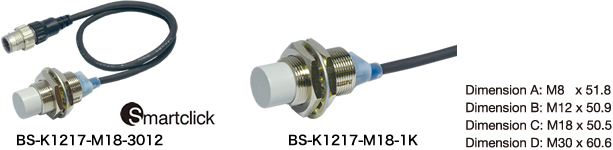

Proximity Type (Non-shield type)

Number of I/O points Input/output specifications Type Detection distance
(mm)		 Consumption current (mA) Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(￥)
Input Output Transmission side I/O side
1 － Electromagnetic induction M8 0～3.4 14.3 － 2-wire type
(non-insulation)		 A 20 BS-K1217-M08-3012 Open
1 － M12 0～6.8 6.8 － B 29 BS-K1217-M12-3012 Open
1 － M18 0～12 6.7 － C 38 BS-K1217-M18-3012 Open
1 － M30 0～20 6.5 － D 90 BS-K1217-M30-3012 Open
1 － Electromagnetic induction M8 0～3.4 14.3 － 2-wire type
(non-insulation)		 A 27 BS-K1217-M08-1K Open
1 － M12 0～6.8 6.8 － B 37 BS-K1217-M12-1K Open
1 － M18 0～12 6.7 － C 45 BS-K1217-M18-1K Open
1 － M30 0～20 6.5 － D 96 BS-K1217-M30-1K Open

* is a registered trademark of OMRON Corporation.

*The dimensions are numerical values excluding the cable section.

*Address Writer is required for writing/reading device address.

▶ Correspondence Table of AnyWireASLINK and Applicable Connectors

◆Comformance and Compliance

Model CE RoHS China RoHS
BS-K1217-M08-3012 ○ ○ 10
BS-K1217-M12-3012 ○ ○ 10
BS-K1217-M18-3012 ○ ○ 10
BS-K1217-M30-3012 ○ ○ 10
BS-K1217-M08-1K ○ ○ 10
BS-K1217-M12-1K ○ ○ 10
BS-K1217-M18-1K ○ ○ 10
BS-K1217-M30-1K ○ ○ 10

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
BS-K1217-M08-3012 pdf dxf
BS-K1217-M12-3012 dxf
BS-K1217-M18-3012 dxf
BS-K1217-M30-3012 dxf
BS-K1217-M08-1K pdf dxf
BS-K1217-M12-1K dxf
BS-K1217-M18-1K dxf
BS-K1217-M30-1K dxf
