Proximity Type (All metal detection type)
| Number of I/O points | Input/output specifications | Type | Detection distance (mm) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||

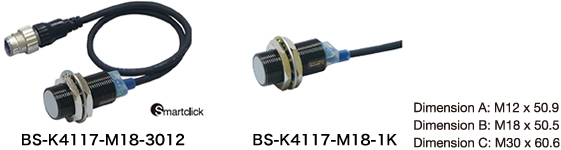

| 1 | － | Electromagnetic induction | M12 | 0～2 | 13 | － | 2-wire type (non-insulation) |
A | 31 | BS-K4117-M12-3012 | Open |
| 1 | － | M18 | 0～5 | － | B | 42 | BS-K4117-M18-3012 | Open | |||
| 1 | － | M30 | 0～10 | － | C | 98 | BS-K4117-M30-3012 | Open | |||
| 1 | － | Electromagnetic induction | M12 | 0～2 | 13 | － | 2-wire type (non-insulation) |
A | 37 | BS-K4117-M12-1K | Open |
| 1 | － | M18 | 0～5 | － | B | 49 | BS-K4117-M18-1K | Open | |||
| 1 | － | M30 | 0～10 | － | C | 105 | BS-K4117-M30-1K | Open | |||
*
is a registered trademark of OMRON Corporation.
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BS-K4117-M12-3012 | - | ○ | 10 |
| BS-K4117-M18-3012 | - | ○ | 10 |
| BS-K4117-M30-3012 | - | ○ | 10 |
| BS-K4117-M12-1K | - | ○ | 10 |
| BS-K4117-M18-1K | - | ○ | 10 |
| BS-K4117-M30-1K | - | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-K4117-M12-3012 |  |
|
| BS-K4117-M18-3012 | ||
| BS-K4117-M30-3012 | ||
| BS-K4117-M12-1K | |
|
| BS-K4117-M18-1K | ||
| BS-K4117-M30-1K |
