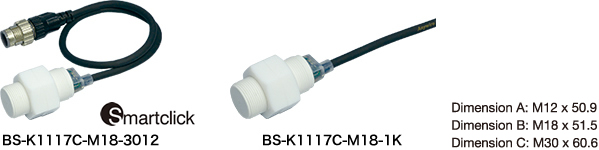

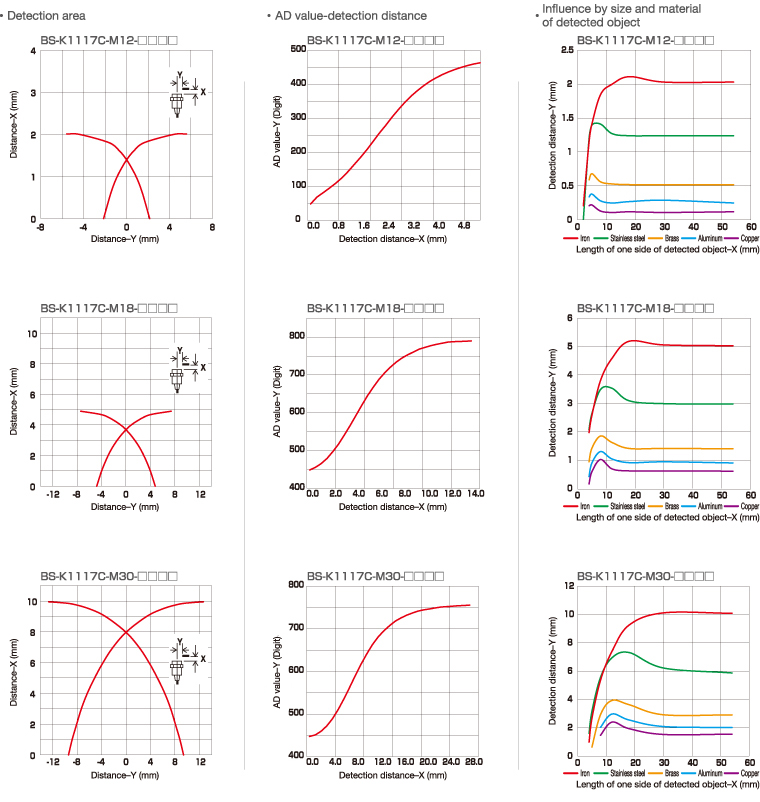

Proximity Type (Chemical-capable (fluorine resin body) type)
| Number of I/O points | Input/output specifications | Type | Detection distance (mm) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 1 | － | Electromagnetic induction | M12 | 0～2 | 6.9 | － | 2-wire type (non-insulation) |
A | 24 | BS-K1117C-M12-3012 | Open |
| 1 | － | M18 | 0～5 | 7.0 | － | B | 34 | BS-K1117C-M18-3012 | Open | ||
| 1 | － | M30 | 0～10 | 7.0 | － | C | 68 | BS-K1117C-M30-3012 | Open | ||
| 1 | － | Electromagnetic induction | M12 | 0～2 | 6.9 | － | 2-wire type (non-insulation) |
A | 31 | BS-K1117C-M12-1K | Open |
| 1 | － | M18 | 0～5 | 7.0 | － | B | 40 | BS-K1117C-M18-1K | Open | ||
| 1 | － | M30 | 0～10 | 7.0 | － | C | 76 | BS-K1117C-M30-1K | Open | ||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
Oil resistance has been confirmed by using oil/cutting oil specified by us*. The device is resistant to oil but there is no guarantee that breakdown will not occur. Do not use the device when it is constantly exposed to oil splashing or under oil jet flow.
* Cutting oil specified by us: Water-insoluble (YUSHIRON CUT KM557, KZ313S), Water-soluble (YUSHIROKEN EC50, AP-EX-E7, FGS700)Immersion at an ambient temperature of 55°C
* Lubricating oil specified by us: (VELOCITY OIL No.3)Immersion at an ambient temperature of 55°C
◆Option
・SUS washers
| Product specifications | Model | Standard price (￥) |
|---|---|---|
| SUS washer for M12 (one washer) | BS-K-M12-SW | Open |
| SUS washer for M18 (one washer) | BS-K-M18-SW | Open |
Washers sold separately for the proximity type (chemical-capable type).
No washer is included for the proximity type because both the body and included nuts are made of fluorine resin, which can be easily damaged. However, since the tightening torque is set to a small value, washers are offered as an option to firmly lock the nuts. Purchase them as necessary.
(There is no optional washer for the M30 type, as it can be firmly tightened without a washer.)
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BS-K1117C-M12-3012 | ○ | ○ | 10 |
| BS-K1117C-M18-3012 | ○ | ○ | 10 |
| BS-K1117C-M30-3012 | ○ | ○ | 10 |
| BS-K1117C-M12-1K | ○ | ○ | 10 |
| BS-K1117C-M18-1K | ○ | ○ | 10 |
| BS-K1117C-M30-1K | ○ | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-K1117C-M12-3012 |  |
 |
| BS-K1117C-M18-3012 | |
|
| BS-K1117C-M30-3012 | |
|
| BS-K1117C-M12-1K | |
|
| BS-K1117C-M18-1K | |
|
| BS-K1117C-M30-1K | |
| Model | CAD(Plan view) |
|---|---|
| BS-K-M12-SW | |
| BS-K-M18-SW |
