Cylinder Type
| Number of I/O points | Input/output specifications | Type | Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | |||||||

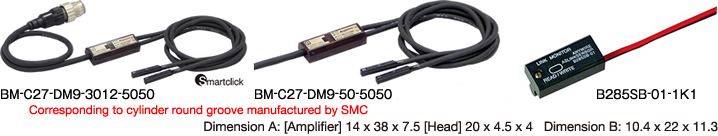

| 2 | － | Magnetic | Cylinder amplier relay type | 8 | － | 2-wire type (non-insulation) |
A | 45 | BM-C27-DM9-3012-5050 | Open |
| 2 | － | Magnetic | Cylinder amplier relay type | 8 | － | 2-wire type (non-insulation) |
A | 40 | BM-C27-DM9-50-5050 | Open |
| 1 | － | Magnetic | Cylinder | 13 | － | 2-wire type (non-insulation) |
B | 16 | B285SB-01-1K1 | Open |
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BM-C27-DM9-3012-5050 | - | ○ | 10 |
| BM-C27-DM9-50-5050 | - | ○ | 10 |
| B285SB-01-1K1 | ○ | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BM-C27-DM9-3012-5050 |  |
|
| BM-C27-DM9-50-5050 | ||
| B285SB-01-1K1 | |
 |

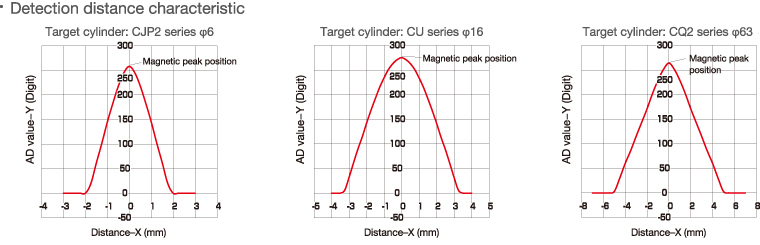

※BM-C27-DM9-□□□□-5050のデータです。
