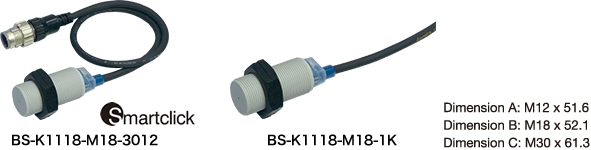

Proximity Type (Polyarylate body type, IP68)
| Number of I/O points | Input/output specifications | Type | Detection distance (mm) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| 1 | － | Electromagnetic induction | M12 | 0～2 | 6.9 | － | 2-wire type (non-insulation) |
A | 23 | BS-K1118-M12-3012 | Open |
| 1 | － | M18 | 0～5 | 7.0 | － | B | 30 | BS-K1118-M18-3012 | Open | ||
| 1 | － | M30 | 0～10 | 7.0 | － | C | 62 | BS-K1118-M30-3012 | Open | ||
| 1 | － | Electromagnetic induction | M12 | 0～2 | 6.9 | － | 2-wire type (non-insulation) |
A | 30 | BS-K1118-M12-1K | Open |
| 1 | － | M18 | 0～5 | 7.0 | － | B | 38 | BS-K1118-M18-1K | Open | ||
| 1 | － | M30 | 0～10 | 7.0 | － | C | 70 | BS-K1118-M30-1K | Open | ||
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
No washer is included because the device is made of polyarylate resin, which can be easily damaged.
Since the tightening torque is set to a larger value than that for the chemical-capable type, SUS washers are not offered as an option. However, they can be used as necessary.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BS-K1118-M12-3012 | ○ | ○ | 10 |
| BS-K1118-M18-3012 | ○ | ○ | 10 |
| BS-K1118-M30-3012 | ○ | ○ | 10 |
| BS-K1118-M12-1K | ○ | ○ | 10 |
| BS-K1118-M18-1K | ○ | ○ | 10 |
| BS-K1118-M30-1K | ○ | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-K1118-M12-3012 |  |
 |
| BS-K1118-M18-3012 | |
|
| BS-K1118-M30-3012 | |
|
| BS-K1118-M12-1K | |
|
| BS-K1118-M18-1K | |
|
| BS-K1118-M30-1K | |
| Model | CAD(Plan view) |
|---|---|
| BS-K-M12-SW | |
| BS-K-M18-SW |
