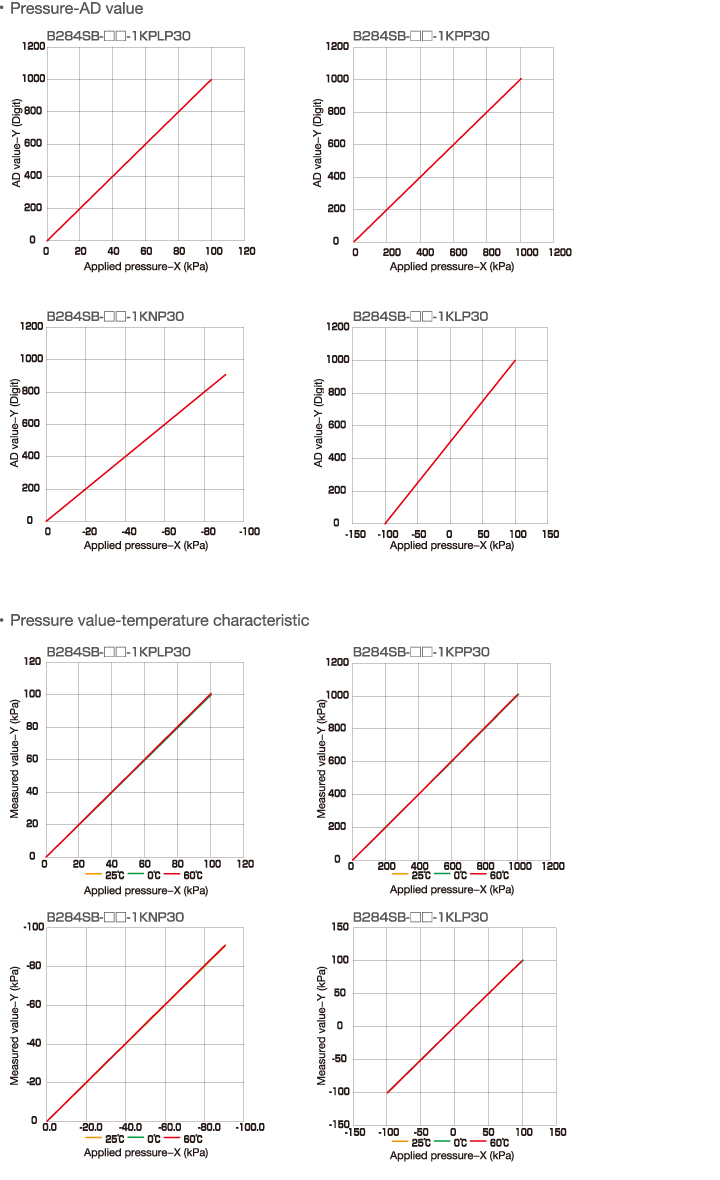

Pressure Type

Number of I/O points Input/output specifications Type Gauge pressure
(kPa)		 Consumption current (mA) Connection Dimension
(mm)		 Mass
(g)		 Model Standard price
(￥)
Input Output Transmission side I/O side

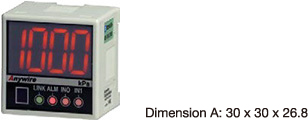

1 － Pressure sensitive Pressure Low positive pressure
0 ～ 100		 20 － 2-wire type
(non-insulation)		 A 25 B284SB-01-1KPLP30 16,500
2 － 20 － B284SB-02-1KPLP30 16,500
1 － Positive pressure
0 ～ 1000		 20 － B284SB-01-1KPP30 Open
2 － 20 － B284SB-02-1KPP30 Open
1 － Negative pressure
0 ～-100		 20 － B284SB-01-1KNP30 Open
2 － 20 － B284SB-02-1KNP30 Open
1 － Compound pressure
-100 ～ 100		 20 － B284SB-01-1KLP30 Open
2 － 20 － B284SB-02-1KLP30 Open
16 － Low positive pressure
0 ～ 100		 20 － B284SB-J1-1KPLP30 Open
16 － Positive pressure
0 ～ 1000		 20 － B284SB-J1-1KPP30 Open
16 － Negative pressure
0 ～-100		 20 － B284SB-J1-1KNP30 Open
16 － Compound pressure
-100 ～ 100		 20 － B284SB-J1-1KLP30 Open

* The dimensions are values only for the body.

*Address Writer is required for writing/reading device address.

▶ Correspondence Table of AnyWireASLINK and Applicable Connectors

◆Comformance and Compliance

Model CE RoHS China RoHS
B284SB-01-1KPLP30 ○ ○ 10
B284SB-02-1KPLP30 ○ ○ 10
B284SB-01-1KPP30 ○ ○ 10
B284SB-02-1KPP30 ○ ○ 10
B284SB-01-1KNP30 ○ ○ 10
B284SB-02-1KNP30 ○ ○ 10
B284SB-01-1KLP30 ○ ○ 10
B284SB-02-1KLP30 ○ ○ 10
B284SB-J1-1KPLP30 ○ ○ 10
B284SB-J1-1KPP30 ○ ○ 10
B284SB-J1-1KNP30 ○ ○ 10
B284SB-J1-1KLP30 ○ ○ 10

* Please contact us for conformance and compliance other than UL and KC stated above.

Model Product Guide CAD(Plan view)
B284SB-01-1KPLP30 pdf dxf
B284SB-02-1KPLP30 dxf
B284SB-01-1KPP30 dxf
B284SB-02-1KPP30 dxf
B284SB-01-1KNP30 dxf
B284SB-02-1KNP30 dxf
B284SB-01-1KLP30 dxf
B284SB-02-1KLP30 dxf
B284SB-J1-1KPLP30 pdf dxf
B284SB-J1-1KPP30 dxf
B284SB-J1-1KNP30 dxf
B284SB-J1-1KLP30 dxf
