Laser Spot Transmission Type
◆Laser Spot Transmission Type (IP67)
| Number of I/O points | Input/output specifications | Type | Detection distance (m) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| － | 1 | Transmission light emitting (red LD) |

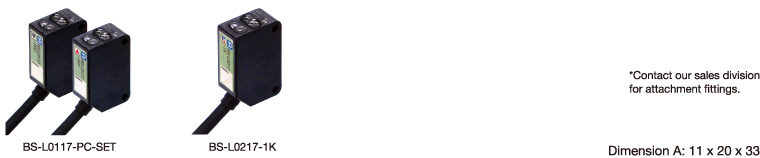

Laser spot IP67 | 30 | 7 | － | 2-wire type (non-insulation) | A | 33 | Set model BS-L0117-PC-SET |
Open |
| 1 | － | Transmission light receiving (red LD) |
8 | － | |||||||
| 1 | － | Recurrent reflection (red LD) |
Laser spot IP67 | 0.3～10 | 10 | － | 2-wire type (non-insulation) | A | 33 | BS-L0217-1K | Open |
*“BS-L0117-PC-SET” is a combination of transmission light emitting “BS-L0117-1KP” and transmission light receiving “BS-L0117-1KC.”
*The detection distance by “BS-L0217-1K” is the value when using “AKR-1.”
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
◆Reflection plate for photoelectric sensor
| Type | Dimensions (mm) | Model | Standard price (￥) |
|---|---|---|---|
| Reflection plate | 60.9×50.9 | AKR-1 | Open |
| Reflection plate | 42×35 | AKR-2 | Open |
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| Set model BS-L0117-PC-SET |
○ | ○ | 10 |
| BS-L0217-1K | - | ○ | 10 |
| AKR-1 | - | ○ | - |
| AKR-2 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.

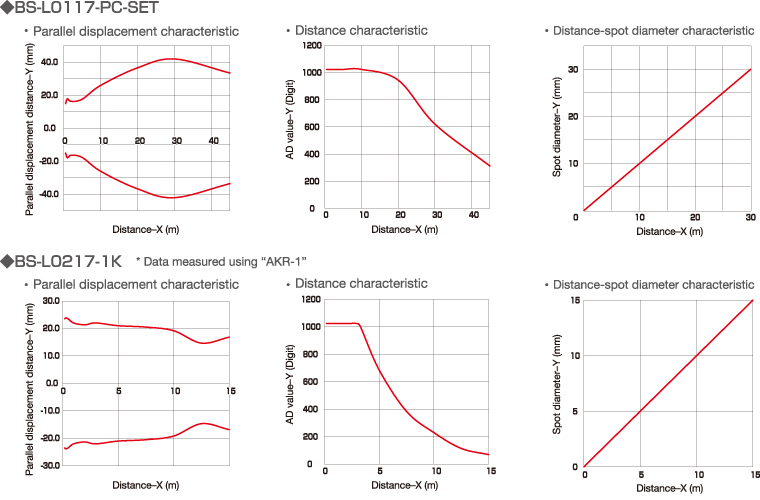

◆Laser Spot Transmission Type (IP67)
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| Set model BS-L0117-PC-SET |
 |
◆Recurrent Reflection Type (IP67)
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-L0217-1K | |
◆Reflection plate for photoelectric sensor
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| AKR-1 |  |
|
| AKR-2 | |
