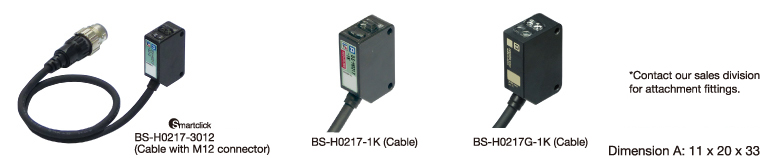

Photoelectric Recurrent Reflection Type
| Number of I/O points | Input/output specifications | Type | Detection distance (mm) |
Consumption current (mA) | Connection | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | 1 | － | Recurrent reflection (red light) |
IP67 | 3000 | 10 | － | 2-wire type (non-insulation) | A | 22 | BS-H0217-3012 | Open |
| 1 | － | Recurrent reflection (red light) |
IP67 | 3000 | 10 | － | 2-wire type (non-insulation) | A | 33 | BS-H0217-1K | Open |
| 1 | － | Recurrent reflection (red light) |
IP67 company standard oil resistance |
3000 | 10 | － | 2-wire type (non-insulation) | A | 33 | BS-H0217G-1K | Open |
*The dimensions are numerical values excluding the cable section.
*Address Writer is required for writing/reading device address.
Oil resistance has been confirmed by using oil/cutting oil specified by us*. The device is resistant to oil but there is no guarantee that breakdown will not occur. Do not use the device when it is constantly exposed to oil splashing or under oil jet flow.
* Cutting oil specified by us: Water-insoluble (YUSHIRON CUT KM557, KZ313S), Water-soluble (YUSHIROKEN EC50, AP-EX-E7, FGS700)Immersion at an ambient temperature of 55°C
* Lubricating oil specified by us: (VELOCITY OIL No.3)Immersion at an ambient temperature of 55°C
◆Option

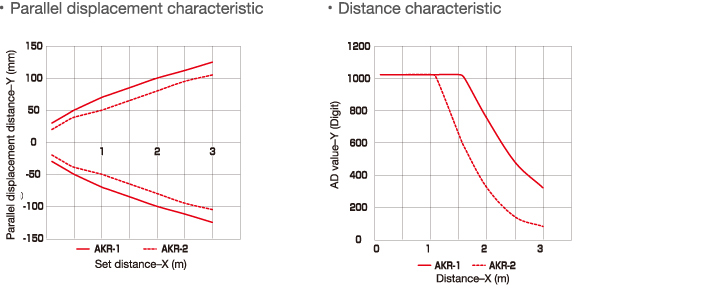

・Reflection plate for photoelectric sensor
| Type | Dimensions (mm) | Model | Standard price (￥) |
|---|---|---|---|
| Reflection plate | 60.9×50.9 | AKR-1 | Open |
| 42×35 | AKR-2 | Open |
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BS-H0217-3012 | ○ | ○ | 10 |
| BS-H0217-1K | ○ | ○ | 10 |
| BS-H0217G-1K | ○ | ○ | 10 |
| AKR-1 | - | ○ | - |
| AKR-2 | - | ○ | - |
* Please contact us for conformance and compliance other than UL and KC stated above.
◆Photoelectric Recurrent Reflection Type
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-H0217-3012 |  |
|
| BS-H0217-1K | |
 |
◆Photoelectric Recurrent Reflection Type (IP67, IP67 company standard oil resistance)
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BS-H0217G-1K | |
|
◆Option
・Reflection plate for photoelectric sensor
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| AKR-1 | |
|
| AKR-2 | |
