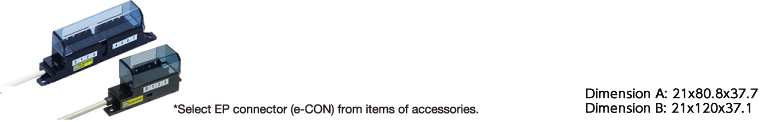

Power distribution unit
| Number of I/O points | Input/output specification | Method | Consumption current (mA) | Connection | I/O side Connection connector | Dimension (mm) |
Mass (g) |
Model | Standard price (￥) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | Transmission side | I/O side | ||||||||
| - | - | - | - | - | 1 | 4-wire type (insulation) | e-CON | A | 35 | BL296-04PW-4A-20 | Open |
| - | - | - | - | - | 1 | B | 41 | BL296-08PW-4A-20 | Open | ||
*The dimensions are numerical values excluding the cable section.
◆Comformance and Compliance
| Model | CE | RoHS | China RoHS |
|---|---|---|---|
| BL296-04PW-4A-20 | - | ○ | 10 |
| BL296-08PW-4A-20 | - | ○ | 10 |
* Please contact us for conformance and compliance other than UL and KC stated above.
| Model | Product Guide | CAD(Plan view) |
|---|---|---|
| BL296-04PW-4A-20 |  |
 |
| BL296-08PW-4A-20 | |
