Instruction: Door opening/closing + LED (Stationary) Response: Lever switch type
◆Door opening/closing + LED indication: Stationary type Lever switch type
：DIP switch
：Address writer
| Indication, instruction |
Response, detection |
Number of I/O points |
Consumption current (mA) |

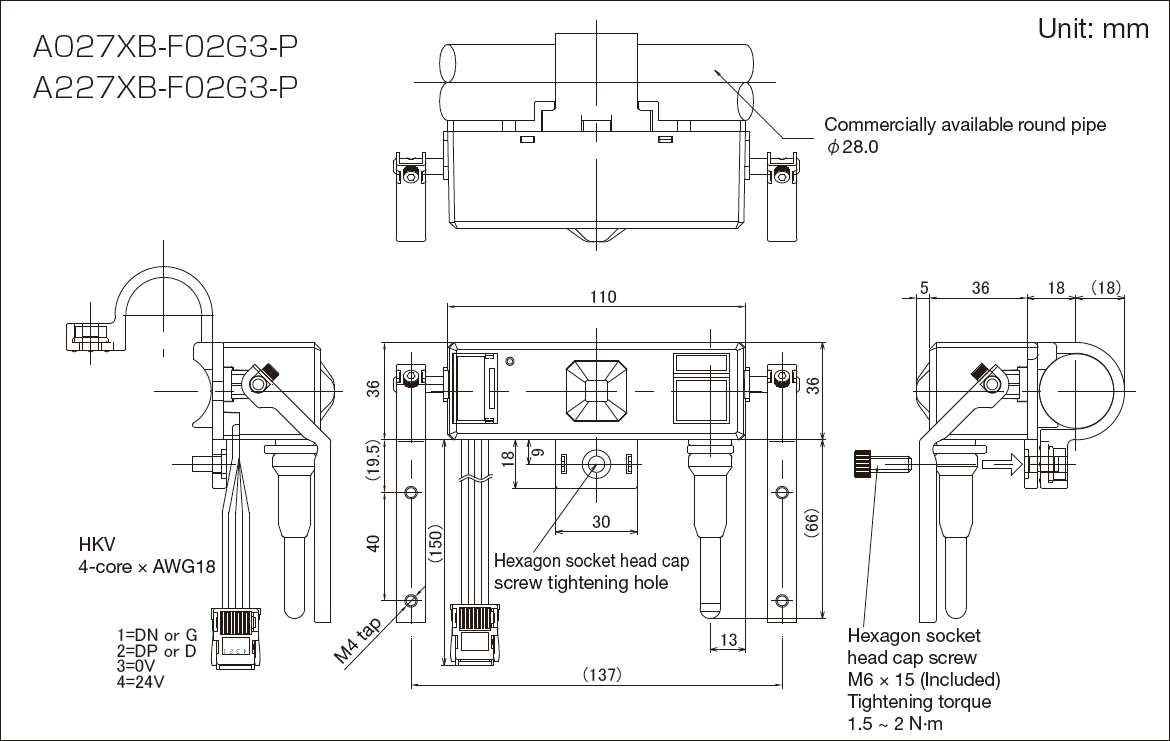

Installation | Dimensional outlines drawing |
Setting | Transmission method |
Model | Standard price(￥) |
Product Guide |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | ||||||||||
 Stationary type (Green) |
Lever switch |
1 | 1 | Standby 19 Motion 522 |
φ28 pipe |  |
|
Bitty | A027XB-F02G3-P | Open | |
Stationary type (Green) |
Lever switch |
1 | 1 | Standby 19 Motion 522 |
φ28 pipe | |
|
DB A20 | A227XB-F02G3-P | Open | Coming soon |
*The above models are equipped with “H” holder as a standard.
*For purchasing an individual replacement holder to be used at the time of a mounting change or making repairs, refer to the following options.
“Address,” “Door arm raising and lowering angle” and “door arm lowering motion delay time” can be set by address writer.
*“Door arm raising and lowering motion speed setting” cannot be performed.
□Arm vertical motion angle
Arm vertical motion angle can be set at seven stages up to approximately 180°. Adjustment can be made when the door collides with the shelf or work.
Write No. of approximate position where you want to stop the door in angle setting mode of the address writer.
*The angle is an approximate one, and the angle cannot be strictly designated.
□Arm lowering delay time
When the unloading indication lamp is lit (output is turned ON), the arm is raised in conjunction with the lamp, and when the lamp is unlit (output is turned OFF), the arm is automatically lowered after a certain time.
This delay time until the arm is lowered can be set at 11 stages.
◆Option
| Product specifications | Installation | Dimensional outlines drawing |
Model | Standard price(￥) |
|---|---|---|---|---|
| [H] holder φ28 pipe installation holder lower tightening type (including 5 holders) | φ28 pipe |  |
A027-HP28-5P | Open |
| [H1] holder φ28 pipe installation holder back tightening type (including 5 holders) | φ28 pipe |  |
A027-HP28-H1-5P | Open |
| [SUS] holder SUS pipe installation holder (including 1 holder) | SUSpipe |  |
A027-HP-SUS2 | Open▲ |
| Replacement rubber lever set (including cover, lever, ring respectively 5 pieces) | Terminal | ― | A027-LES-01-5P | Open |
| Address switch cover (slide type, Black) (including 5 pieces) | Slide | ― | A027-KA3-5P | Open |
*φ28 pipe installation holder is included with the POKAYOKE terminal (φ28 pipe installation type). Single part is an option for change of installation and repair.
◆Address writer
| Product specifications | Type | Dimensional outlines drawing |
Model | Standard price(￥) |
Product Guide |
|---|---|---|---|---|---|
| Address writer (general-purpose) | Non-contact type |  |
ARW-04 | Open | |
| Infrared ray remote head for address writer | Non-contact type | ― | ARW-RH | Open | |
| Address writer ARW-04 + Infrared ray remote head | Non-contact type | ― | ARW-04-RH | Open |
